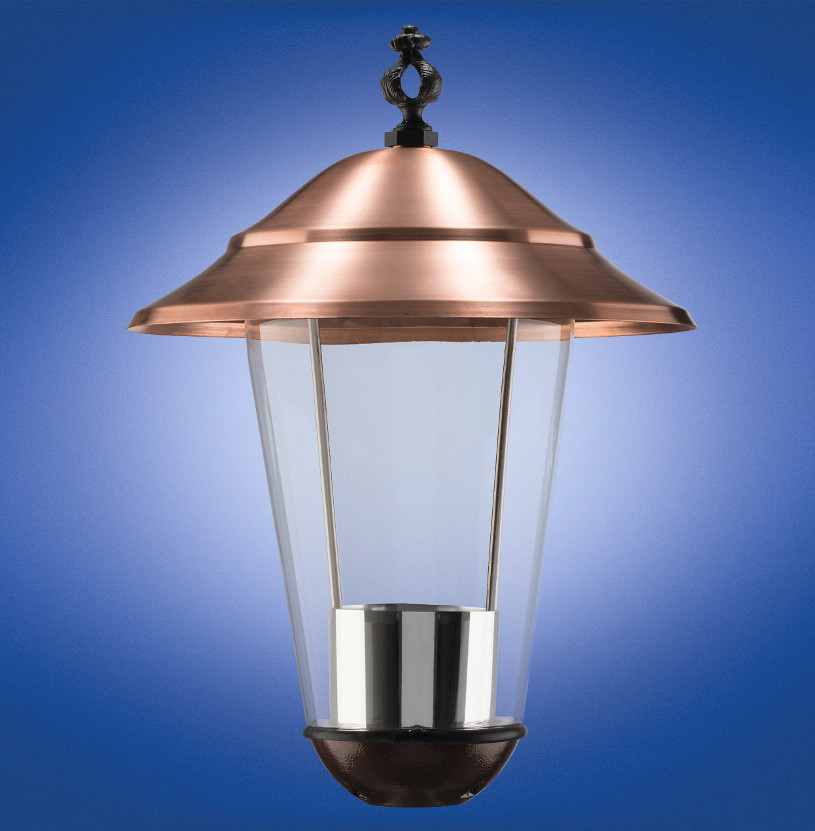

Laterne Amsterdam 044 + 045

with copper and aluminium roof, modern LED technology


amsterdam_TZ     amsterdam_TZ2

amsterdam     amsterdam2


Technical description
Gehäuse: Mast attachment cast aluminium for mast spigot 76/60 mm. Series 044 with roof made of hardened, pressed aluminium, roof nut made of aluminium cast, alternative Series 045 with roof made of pure copper with decorative crown.
Glass: PMMA smooth-clear, impact resistant, UV-stabilized
Lighting technology: High-Power LED 1.100 lm to 3.000 lm, 3.000° K - in the upper part of the luminaire. (alternative 4.000° K) Symmetrical or asymmetrical glare-free light distribution using high-quality LEDIL lens technology 10 W to 28 W. Dimmable and programmable driver (DALI) of your choice, according to test standard IEC-61643-11.
Others: Durable EPDM seals, Stainless steel screws. Easy installation and maintenance - Removable carrier can be removed by means of quick-release connector.
Unten optisches Kaschierungsblech.
Coating: High-quality powder enamelling in RAL 9005 or 9006. Other RAL standard colours of your choice or special colours in DB or iron mica. Series 045 - Copper roof and protective coating.

IPO_65 230V_50Hz Fernsprecher Erde SYM ASY LED_10_18W LED_20_32W es-ce
